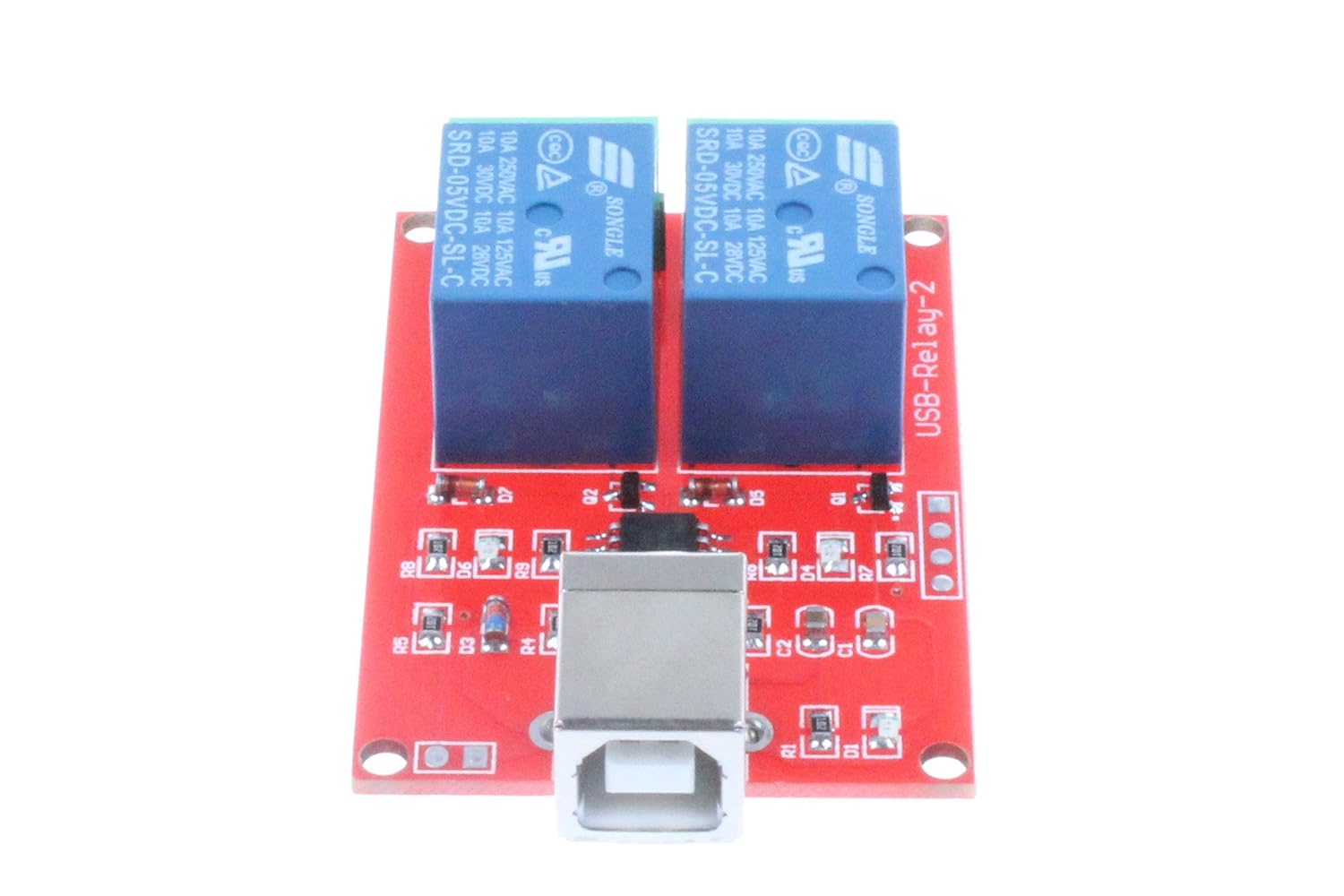

NOYITO 2-Channel 5V Computer USB Control Switch Relay Module Drive-Free Relay Module Plug and Play Suitable for PC Smart Controller
Product details
| Management number | 233915910 | Release Date | 2026/06/27 | List Price | US$4.40 | Model Number | 233915910 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
NOYITO USB Relay External Use Development Library , Code , Test app Download https://1drv.ms/u/c/4a0865b22350d05c/IQBc0FAjsmUIIIBK5AAAAAAAAToR290hsu2u5uU8mgxO5OQ?e=hZXwbh 【NOTE: The 1-Channel 2-Channel module does not require an external power supply. 4-Channel 8-Channel modules require an external module power supply. 】 Product parameters: Input voltage: DC 5 V; Input current: greater than 300mA; Wiring method: NC / COM / NO; Relay parameters: Maximum control AC 250V, 10A AC load and maximum DC30V 10A DC load; Module Package Inluded: 1*2-Channel 5V USB Control Switch Relay Module
- The module uses HID technology, without any driver, plug and play. Support WIN7,10, XP 32-bit, 64-bit system, easy to use simple.
- Onboard square USB interface, stable connection; use of high-performance USB control chip; use dedicated relay driver chip ULN2803, relay work more stable;
- Power outlet and terminal, two access power mode convenient and flexible. After connecting the power, even if the computer shut down or USB from the computer pull out, the relay can also maintain the set state.
- 【NOTE: The 1-Channel 2-Channel module does not require an external power supply. 4-Channel 8-Channel modules require an external module power supply. 】
- PCB size: 56.5mm * 40.6mm, fixed hole size: 3mm, fixed hole center moment: 52.2mm * 36.6mm.
| UPC | 667797749194 |
|---|---|
| ASIN | B07CFQMDJ3 |
| Model | NO5VCUCS-252 |
| Wattage | 1.5 watts |
| Brand Name | NOYITO |
| Item Weight | 32 Grams |
| Part Number | NO5VCUCS-252 |
| Coil Voltage | 5 Volts |
| Contact Type | Normally Closed |
| Manufacturer | NOYITO |
| Mounting Type | Surface Mount |
| Connector Type | Usb-b |
| Current Rating | 10 Amps |
| Operation Mode | Automatic |
| Contact Material | Silver |
| Specification Met | Uln2803 |
| Number of Terminals | 2 |
| Warranty Description | Manufacturer's One-year After-sale Warranty |
| Contact Current Rating | 10 Amps |
| Maximum Switching Current | 10 Amps |
| Maximum Switching Voltage | 250 Volts (AC) |
| Minimum Switching Voltage | 249 Volts (AC) |
